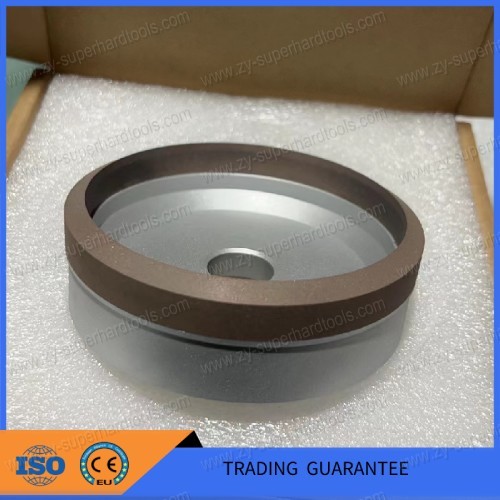

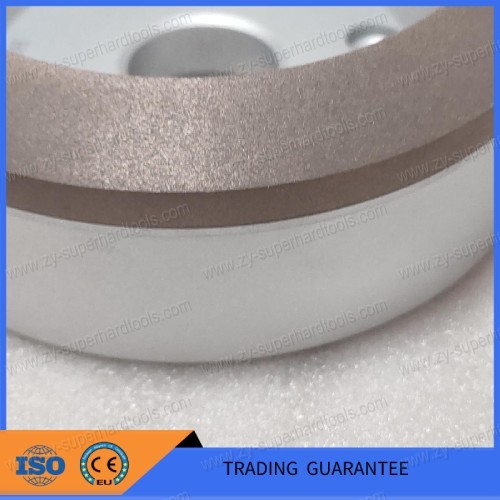

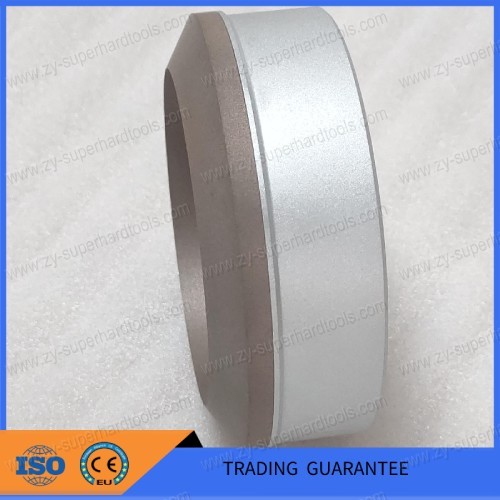

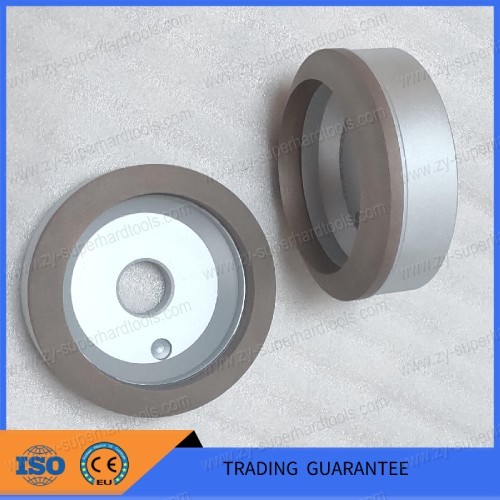

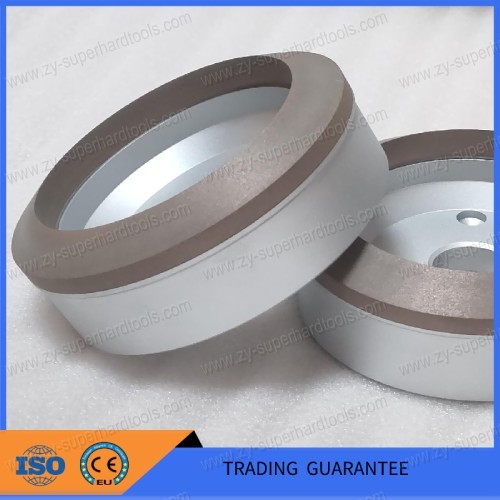

6V5 Five Axis CNC Grinding Wheels for Walter Tool Grinding Machine
6V5 Type Five Axis CNC Grinding Wheels in Resin Bond
Application:Clearance Angle Grinding
Drawing:
Specification (mm):
6V5 | D | T | X | H | V | GRIT SIZEE | |
(mm) | (mm) | (mm) | (mm) | 30° 40° 45° 50° 60° 70° 75° | DIAMOND | CBN | |
75 | 20/25/30/32/35/40 | 3-10 | 20,31.75,32 | D76 D64 D46 D35 D25 | B91 B46 B30 | ||
100 | 20/25/30/32/35/40 | 3-10 | 20,31.75,32 | ||||
125 | 20/25/30/32/35/40 | 6-10 | 20,31.75,32 | ||||
150 | 20/25/30/32/35/40 | 6-15 | 20,31.75,32 | ||||
200 | 20/25/30/32/35/40 | 6-15 | 20,31.75,32 | ||||
Note: other specifications can be customized upon request!
Other Type Drawing:
