ZY-X5 Semi-automatic Grinding Wheel Dresser

1. ZY-X5 Semi-automatic Grinding Wheel Dresser / ZY-X5 Semi-automatic Grinding Wheel Finsher / Grinding wheel trimmer / Radius Wheel Dresser / Grinding wheel dressing machine

Suit for wheel packs of Walter, Anca, Rollomatic, Reinecker, Saacke, Schneeberger grinding machine.

it can be used for dressing the angle,stright,convex,radius of Diamond and CBN Wheels

Applied industry :

Tool industry Wheel packs

Fully Automatic CNC Control of Profile & Dressing machine

Steel Industry Wheel Profiles

2. ZY-X5 is a semi-automatic grinding wheel dresser, drawn with the machine's special CCD application Auto cad to DXF loading can be processed easily render the size and contour, double R angle, round groove knife, sharp corners small R-shaped Jieke to be varied in accordance with the demand of processing.

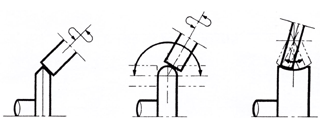

The machine can also be repaired as follows a number of shapes of grinding wheels, the grinding method is simple and convenient:

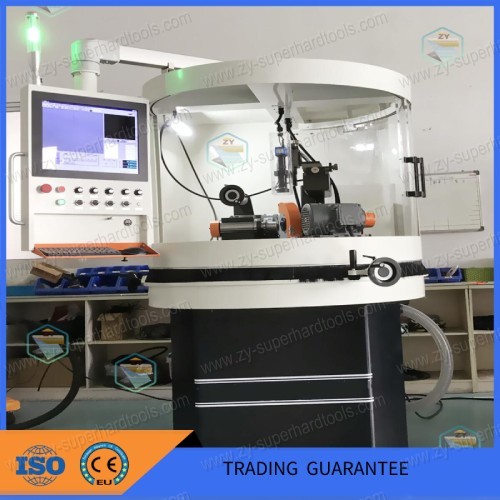

3. ZY-X5 Introduction

This machine is to use the principle of the speed difference between the trimmed grinding wheel and the trimmed grinding wheel to achieve the shape dressing of the trimmed grinding wheel.The machine itself can provide simple and efficient dressing for a grinding wheel group consisting of diamond grinding wheels, CBN grinding wheels and multiple grinding wheels, dressing planes, angles, arcs and molded grinding wheels. The machine is simple to operate, with high precision and has the following characteristics:

* The use of precision linear rail and ball wire rod produced in Japan, and the addition of several light-meter rulers, so that when the modified grinding wheel is corrected, positioning accuracy, width size and arc size can be adjusted and measured at any time.

*The rotary shaft uses high-precision tapered roller bearings made in Japan to achieve rotation accuracy and smoothness.

* The speed of the dressing grinding wheel, the left and right swing speed, the size of the swing stroke, and the position of the grinding wheel can be adjusted.

* CCD photography unit with15 to120 x magnification and 19-inchLCD display, The arc, angle and size of the grinding wheel can be measured and tested at work.

* The CCD and optical dimension units provide easy-to-use settings and measuring the width, position and inspection of the grinding wheel during or after dressing. The measurement accuracy can be up to 0.005~0.01mm.

* A dust cover on the outside to prevent dust leakage.

* Electronic hand wheel controls axis X/Y/A.

*The fuselage is larger and more stable.

4. Product Specification

5.Our ZY-X3 and ZY-X5 dressing machine are suit for wheel packs of Walter, Anca, Rollomatic, Reinecker, Saacke,Schneeberger grinding machine and other tool grinders.

6.Any detailed to know,please contact us!
