11B2 Grinding Wheel

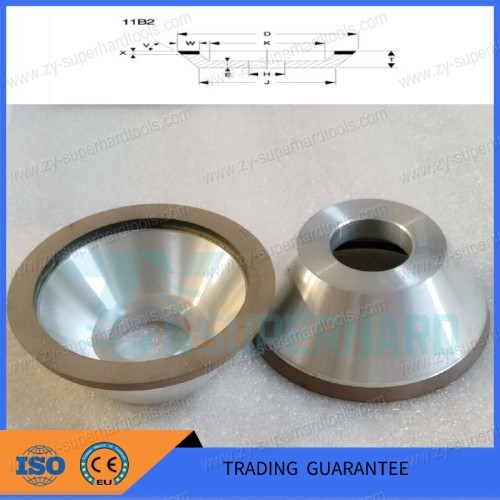

11B2 Grinding Wheel with Resin Bond Or CBN Bond

Specification As Follows (Unit:mm)

D	T	H	W	X	V
75	20	19,20	5-12	2-10	45°,50°,60°,75°
80	20-25	19,20
90	20-30	19,20
100	20-30	19,20,31.75,32
125	20-35	20,31.75,32
150	20-35	20,31.75,32
180	20-35	20,31.75,32
Note: other specifications can be customized upon request!

Other Type Drawing:

DRAWING OF 11C9 11V2 11V9 12A2 12A2T 12V5 14A1 14E1 14EE1 14F1 grindig wheels.png

Drawing of 1A1 1A1R 1A8 1E1 1EE1 1F1 1FF1 1V1.png

DRAWING OF 3A1 3E1 3F1 3V1 4B2 4BT9 6A2 6A9 6B9 6V5 9A1 9A3 11A9 11B2 grindig wheels.png
