14EE1 5 Axis CNC Grinding Wheel

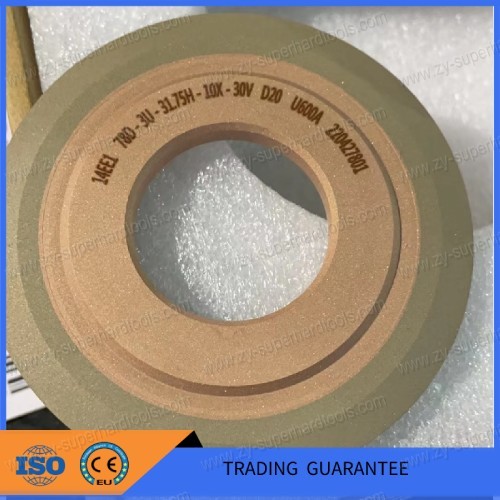

14EE1 Grinding Wheel

14EE1 5 Axis CNC Grinding Wheel

Application of 14EE1 Grinding Wheel:this shape is used for cutting and grinding external and internal threads, profile grinding of shaped surfaces made of hard alloy, high-speed alloyed high-strength steels and other hard-to-machine materials, processing of industrial and decorative glass, crystal.

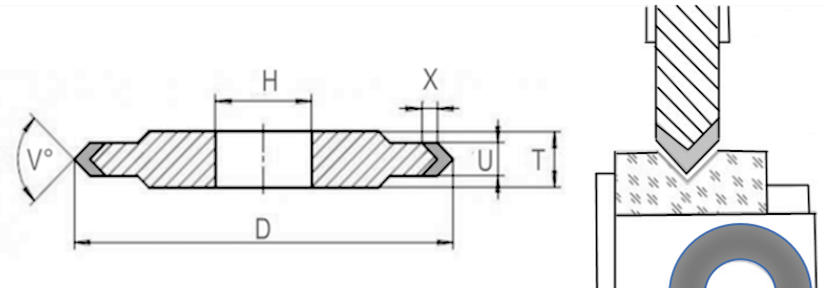

Drawing of 14EE1 Grinding Wheel

Specification of 14EE1 Grinding Wheels ( Resin Bond or Metal Bond)

D (mm)	X (mm)	U (mm)	T (mm)	V (°）	H (mm)	Grit
125	5	3	6	45	32	D20,D46,D54, D64,D91 D126,D213 or other mesh can be customized
125	6	3	6	35	32
125	4	3	6	60	32
125	3	3	6	90	32
150	3	3	6	90	32
150	4	3	6	60	32
180	6	5	10	25	32
250	4	6	15	60	76
250	5	6	10	70	32
250	5	8	10	70	32
350	4	6	15	60	127
Note: Other specifications can be customized upon request!
